Range: ½” to 60” (Larger diameters available on request)

Pressure Ratings: 150 to 10000 lbs

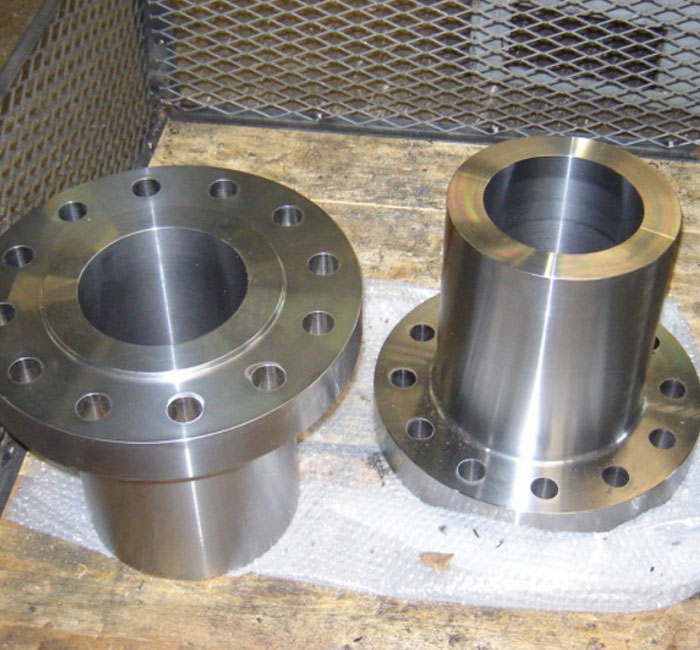

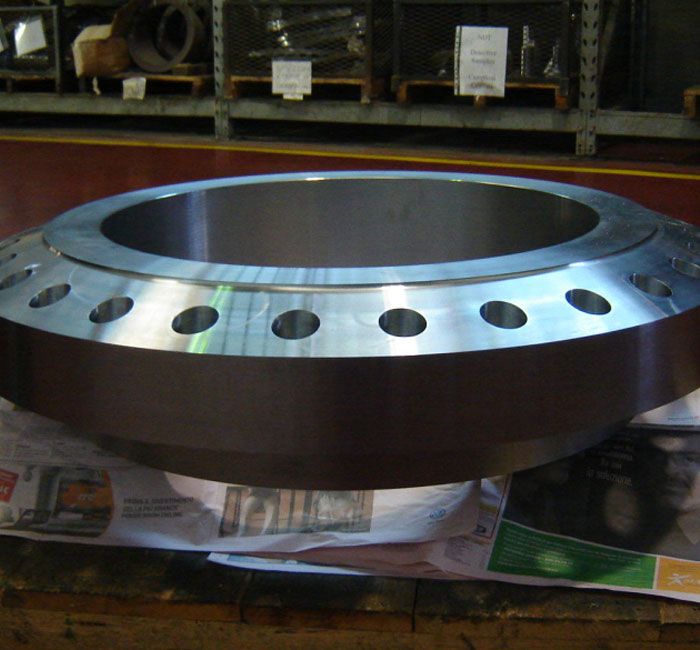

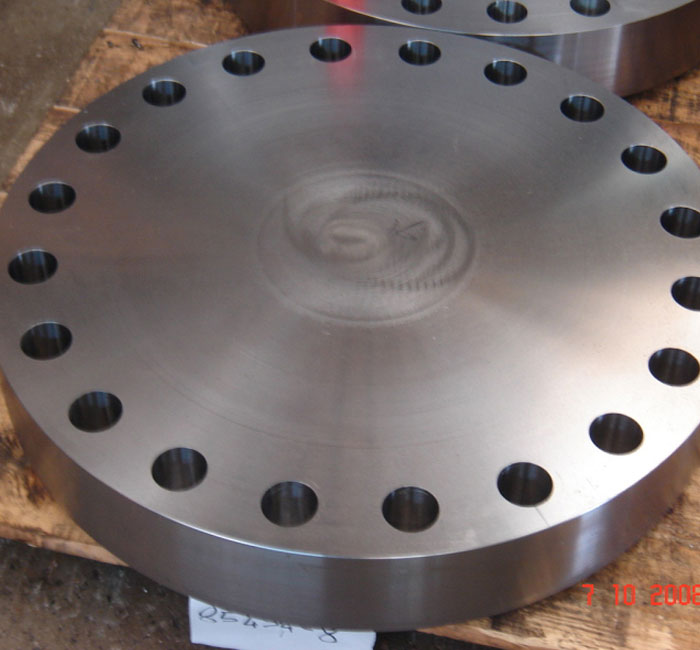

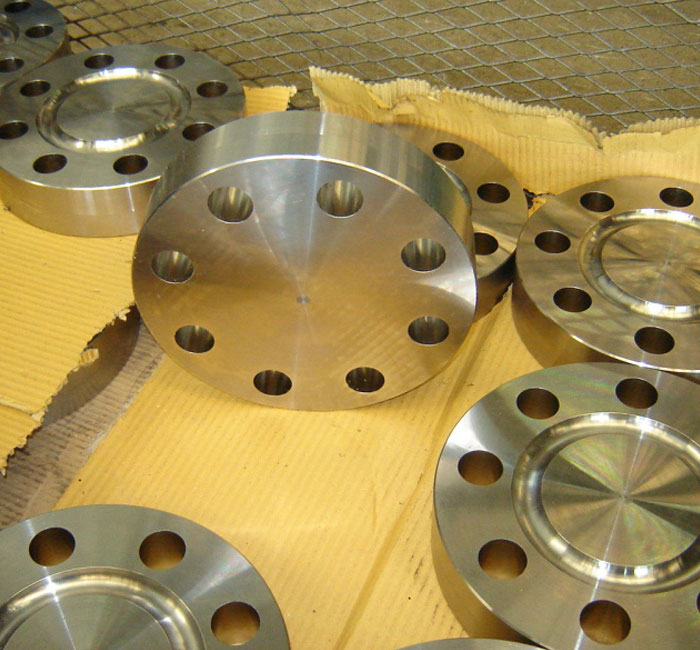

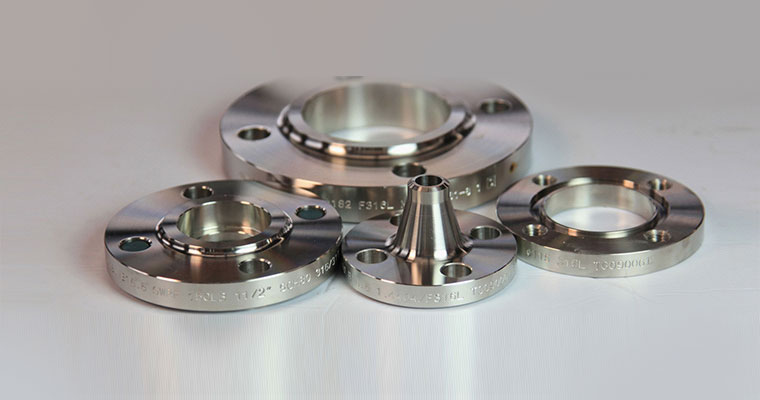

Types: Weld Neck, Blind, Slip-On, Socket Weld, Threaded, Lap Joint, Reducing, Spectacle Plate, Spade, Ring Spacers, Drip Rings, Orifice, Long Weld Neck, Smart Flanges, Nippo Flanges, Stub Ends, HUB Connectors, Clamps

Flange Facing: Raised Face (RF), Ring Type Joint (RTJ), Large Raised Face (LRF), Large Tongue and Groove (LTG)

Wall Thickness: Schedule S-10 to S-XXS (Special and intermediate wall thicknesses available in stock)

DIMENSIONS & TOLERANCES

ASME/ANSI B16.5, B16.48, MSS SP-44, B16.47 Series A (API 605), B16.47 Series B, API 6A

MATERIAL GRADES

• Carbon Steel: SA105N, SA350, A694, A707, LF1, LF2, LF3
• Stainless Steel: F304/304L/304H, F310, F316/316L/316H, F317/317L, F321/321H, F316Ti, F347/347H
• Alloy Steel: F42 to F70, Duplex and Super Duplex
• Plate Materials: SA/A240 Gr304L/H, Gr316L, SA/A516 Gr60, Gr65, Gr70
• Special: Nickel Alloys, Cu-Ni, Inconel, Age-Hardening Alloys (e.g. A859)

SPECIFICATIONS & CERTIFICATIONS

NACE, SAMSS, MESC, DGS, KOC, KNPC, API, ASME B16.5, B16.47 Series A & B

Certification: EN 10204 3.1 or 3.2 (IACS-approved)
